Electronically controlled dispensing system for boar, bull and equine semen extension

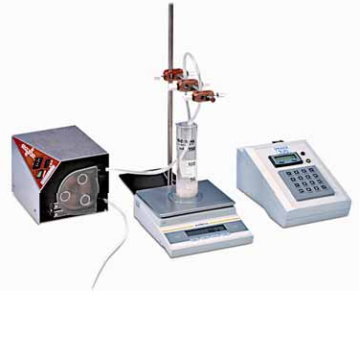

1. The SmartDispenser® consists of an electronic control unit and a balance. It is interfaced with a pump. The basic version is a stand alone unit and works without PC but can optionally be interfaced with the IDEE/IDA software for electronic identification and processing of semen production. A constant feed back between pump, balance and controller guarantees accuracy to the millilitre. This maximum degree of precision in terms of dispensed extender volume (±1g) helps to achieve very precise sperm cell numbers per dose.
2.The process is entirely automatic: the system receives the required amount of extender through the input of the operator, or directly from the ejaculate data management software. The operator starts the system and is then no longer needed. The pump dispenses automatically the calculated amount of extender from the extender storage vessel into each ejaculate. The SmartDispenser® if compared to the use of a pump only, adds precision and security to the process: if the remaining amount of extender in the storage vessel is not sufficient, the system will alert the operator.
highest level of security and precision of the process of semen extension time saving during the most important hours of the day automatic calibration function very modest space requirements existing pumps can be used or adapted
4.SmartDispenser® consisting of electronic control unit and balance for stallion/bull semen
production Ref.No. 13200/0700
5.Pump for SmartDispenser®, with stand, tubing and sinker Ref.No. 13200/0790
