1. Product features
Automatic freezing curve from +5°C to -120°C, with very
low liquid nitrogen consumption
Electronic temperature control
Integrated alarm function
Freezing chamber made of stainless steel
Manual control for LN-gas ventilation
2. Technical data
Digital temperature display
Freezing time: 8 min.
Outer dimensions (W x D x H): 90 x 97 x 107 cm
Usable chamber volume (W x D x H): 69 x 69 x 28
Capacity: 12x 175 straws 0.25 cc on racks or
12x 100 0.5 cc straws
Operating pressure: 0.3 bar
LN-consumption: approx. 7.5 l per freezing cycle
Power supply: 230 V / 50 Hz
3.Accessories

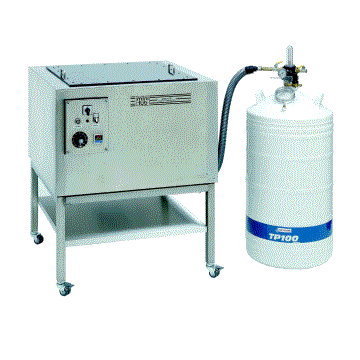

Supply tank for MT semen freezer
Volume: 99 l
Working pressure: max 0.5 bar
Safety valve: 1.5 bar
Outer diameter: 510 mm
Total height: 1213 mm
Evaporation rate: 1.3 l per day
Supply tank 99 l REF. : 16501/0070
Transfer hose REF. : 16150/0166
Roller base REF. : 16501/0204
Freezing rack and loading block for 175 0.25 cc and 100 0.5 cc straws
Rack for 175 straws 0.25 cc REF. : 15040/1755
Rack for 100 straws 0.5 cc REF. : 15040/2105
Loading block for 175 straws 0.25 cc REF. : 15041/1752
Loading block for 100 straws 0.5 cc REF. : 15041/2105
